As a classic technique for studying protein-protein interactions (PPIs), the GST pull-down assay is widely used in fields such as signaling pathway elucidation, pathogen-host interaction studies, and functional protein screening.
However, many researchers have encountered similar challenges:
● The GST-tagged bait protein expresses normally, yet fails to effectively pull down the prey protein;
● Weakly interacting proteins are lost after just a few wash steps;
● High background in Western Blot (WB) and complex/noisy Mass Spectrometry (MS) results lead to poor experimental reproducibility.
These issues often stem not from the experimental technique itself, but from the limitations of the traditional GST purification system.
Traditional GST pull-down assays rely on the reversible enzyme-substrate interaction between GST and glutathione (GSH). When prey proteins originate from cell or plant lysates, abundant endogenous free GSH competes for binding sites. Coupled with the inherently limited affinity of the GST-GSH interaction, this often leads to insufficient binding, the loss of weak interactions, and interference with downstream analyses.
To address these pain points, AlpVHHs GST Nanoselector Magnetic Beads (Cat. No. 010-101-003) utilize a high-affinity anti-GST nanobody instead of the traditional GSH ligand. This provides a more stable and efficient solution for GST pull-down assays, enabling truly high-efficiency enrichment and the generation of high-quality data.
Both plant and mammalian cells express glutathione reductase (GR), which continuously reduces oxidized glutathione (GSSG) to free GSH, maintaining intracellular free GSH at steady-state concentrations in the millimolar range. Endogenous free GSH in the sample competes with the GSH ligands conjugated to the magnetic beads for binding, directly reducing the binding efficiency of the GST-tagged bait protein.
Traditional GST-GSH binding relies primarily on hydrogen bonding and hydrophobic interactions to achieve reversible binding, resulting in relatively weak affinity. On one hand, this makes it difficult to capture low-abundance proteins or those involved in weak interactions; on the other, the reliance on high concentrations of free GSH for competitive elution often disrupts the established protein interaction complexes. The combination of inefficient capture and disruption during elution significantly increases the risk of false-negative results. Furthermore, residual GSH from the elution process can interfere with downstream analyses such as Western blotting and mass spectrometry, further compromising the reliability of the experimental results.
Leveraging high-affinity nanobody-antigen binding technology, GST Nanoselector Magnetic Beads (Cat. No.: 010-101-003) deliver a superior GST pull-down experience—making experiments more efficient, cleaner, and more reliable.
Compared to traditional GSH magnetic beads, the advantages lie not only in higher binding affinity but also in improved data quality throughout the entire pull-down process.
Comparison Dimension | Traditional GSH Magnetic Beads | GST Nanoselector Magnetic Beads |
Binding Principle | Reversible GSH enzyme–GST substrate binding (hydrogen bonding + hydrophobic interactions) | Specific binding between anti-GST nanobody and GST-tagged antigen |
Affinity | µM | pM (approx. million-fold increase) |
Interference by Endogenous GSH | Severe competition, low binding yield | Unaffected |
Capture of Weak Interactions | Dissociates easily during washing, high rate of false negatives | Locked via high affinity, stable complexes |
Elution Conditions | High-concentration GSH elution | Standard elution, compatible with SDS boiling and acid elution |
Downstream Detection | Residual GSH interferes with WB/MS | No residual interference and clean data |
In addition to GST pull-down assays, this product is suitable for a wide range of applications involving GST fusion proteins—such as immunoprecipitation (IP), co-immunoprecipitation (Co-IP), protein purification, and mass spectrometry sample preparation—providing a more flexible and reliable tool for protein interaction research.

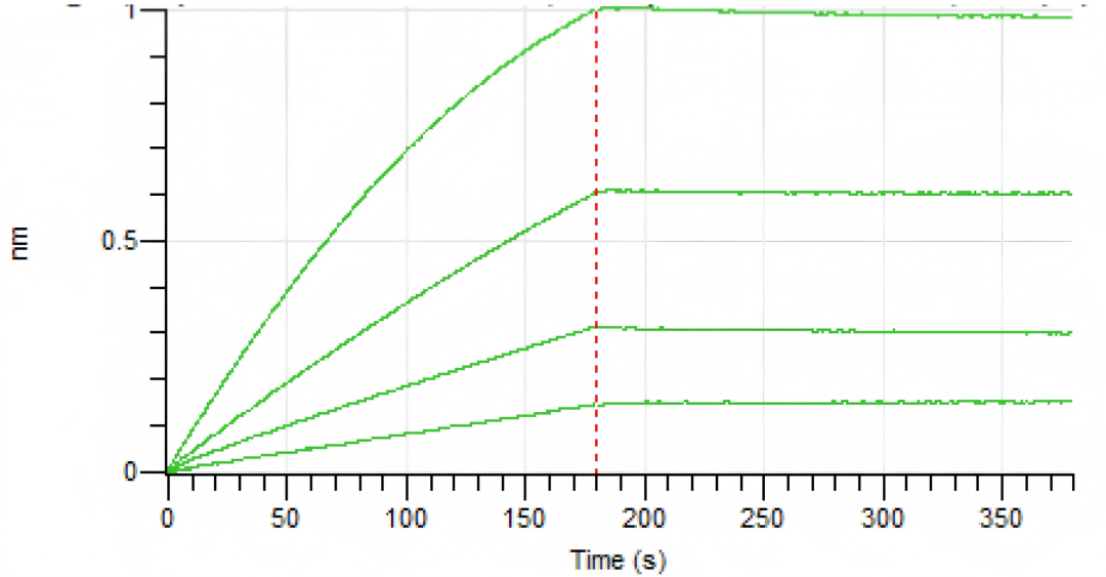

BLI analysis of the affinity between the Nanobody and GST yielded a KD value of 45.2 × 10⁻¹¹ M.
Fig 1. Affinity validation (KD=45.2*10^-11)
A standard pull-down assay can be efficiently performed using as little as 5 μL of magnetic beads. Lower reagent usage combined with higher binding capacity maximizes efficiency at the micro-scale and reduces costs.
Fig 2. Testing of different amounts of GST magnetic beads.
Achieve efficient enrichment of GST-tagged proteins with an incubation time as short as 10 minutes. This high-speed, high-efficiency process eliminates the need for the hours-long or overnight waits associated with traditional methods; when paired with HRP-conjugated antibodies, the overall experimental turnaround time is significantly reduced.
Fig 3. Testing of GST magnetic beads with different incubation times.
GST Nanoselector Magnetic Beads are a product of the AlpVHHs Nanoselector® series.
Developed using high-affinity recombinant nanobodies, this series covers a wide range of common tags—including GST, His, HA, FLAG, Myc, GFP, RFP, MBP, Halo, and SNAP—and offers both agarose and magnetic bead formats. Suitable for applications such as IP, Co-IP, pull-down assays, protein purification, and mass spectrometry sample preparation, the platform provides a unified, high-efficiency solution for protein research.
Traditional GST pull-down methods often struggle to yield stable, reliable data when analyzing complex lysates, as endogenous GSH competes for binding and weak protein interactions are frequently lost.
GST Nanoselector Magnetic Beads (Cat. No. 010-101-003) replace traditional GSH ligands with high-affinity anti-GST nanobodies, upgrading the technology from "enzyme-substrate binding" to "antibody-antigen recognition." This not only significantly enhances the capture efficiency of GST-tagged proteins but also more stably retains complexes formed through weak interactions, delivering a faster, more stable, and more reliable experimental experience for pull-down, IP, Co-IP, protein purification, and mass spectrometry applications.
Make every pull-down faster, more stable, and more reliable.
Reference
[1] Mathewos Tessema, et al. Glutathione-S-transferase-green fluorescent protein fusion protein reveals slow dissociation from high site density beads and measures free GSH. Cytometry Part A, 2006, 69(5): 326–334.
