Immunoprecipitation (IP) is a classical biochemical technique in protein interaction network research that selectively enriches target proteins from complex cell lysates based on antigen–antibody-specific binding. The core procedure consists of the following steps: after binding a specific primary antibody to the target protein, the formed complex is captured using Protein A/G beads. Following washing to remove non-specifically bound proteins, qualitative and quantitative detection of the target protein is achieved through denaturing gel electrophoresis (SDS-PAGE) and Western blot analysis.
Co-immunoprecipitation (Co-IP) extends this principle further, enabling systematic identification of protein partners that directly or indirectly interact with the target protein. Co-IP assays is an essential tool in protein interaction network research, signal pathway analysis, and complex composition identification.
Despite the widespread adoption of IP/Co-IP technology, practical applications face a common and unavoidable source of interference: background signal introduced by the IP primary antibody during the Western blot detection phase.
In immunoprecipitation and co-immunoprecipitation experiments, primary antibody availability often necessitates the use of the same primary antibody or antibodies from the same species for both IP and WB procedures. When conventional anti-species IgG enzyme-conjugated secondary antibodies are used, the WB will detect the heavy chain (~ 55 kDa) and light chain (~ 25 kDa) generated from denatured IP antibodies. Since the amount of antibody used in IP assays typically far exceeds the antibody concentration used in WB assays, non-specific signals frequently partially or completely mask the signal from the target protein—particularly affecting bands in the light-chain and heavy-chain regions—which substantially compromises the accuracy of experimental results.
Researchers have developed multiple strategies to address heavy-chain and light-chain interference in IP assays. The following provides a systematic evaluation across three dimensions.
Using primary antibodies from alternative species for Western blot can reduce interference from IP antibodies. Antibodies from different species sources can effectively minimize interference from heavy-chain and light-chain signals during WB assays. However, if primary antibodies from multiple species are not readily available commercially, this substantially restricts experimental feasibility. Additionally, sourcing antibodies of the same type from different species significantly increases project costs.
Primary antibody species used for IP | Primary antibody species for Wb detection | Type of secondary antibody for Wb detection |
Mouse | Rabbit | Anti-Rabbit IgG-HRP |
Rabbit | Mouse | Anti-Mouse IgG-HRP |
This strategy employs secondary antibodies with chain-specific reactivity, selected based on the molecular weight of the target protein during WB analysis.
● For target proteins near 25 kDa, heavy-chain-specific secondary antibodies are selected to circumvent light-chain interference.
● Conversely, for targets near 55 kDa, light-chain-specific secondary antibodies are used to circumvent heavy-chain interference.
While these chain-specific antibodies provide a flexible workaround for specific molecular weight ranges, their effectiveness depends heavily on the researcher's accurate prediction of the target protein's position. However, what if your target protein is masked by both chains, or if you seek a more universal solution that doesn't require complex decision-making?
Beyond just filtering by molecular weight, a more sophisticated approach lies in changing the fundamental recognition mechanism of the secondary antibody. This leads us to the most recommended technology for background-free results.

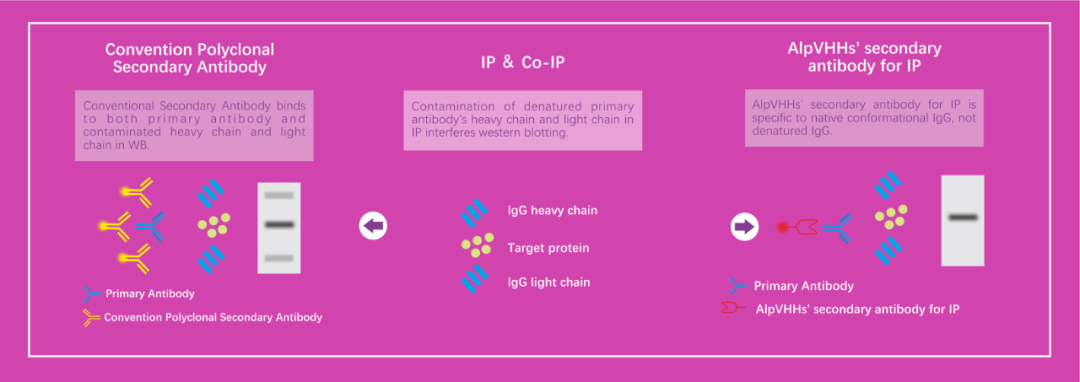

Conventional secondary antibodies recognize linear epitopes of the primary antibody—continuous amino acid sequences. When antibodies undergo SDS-PAGE denaturation, heavy and light chains unfold, yet these linear epitopes remain exposed. Consequently, conventional secondary antibodies continue binding, producing background signal.
IP-specific nano-secondary antibodies (VHH), by contrast, are engineered to exclusively recognize conformational epitopes on natively folded intact IgG.
The Core Scientific Principle:
● Mechanism: These epitopes are defined by their three-dimensional spatial structure, relying on the precise arrangement of non-contiguous amino acid sequences.
● The "Clean Background" Logic: Upon SDS denaturation during Western Blot sample preparation, the primary antibody's heavy and light chains lose their native conformation. Consequently, these spatial epitopes disappear, causing VHH antibodies to "ignore" the interfering chains.
● Result: The VHH maintains high affinity only for the structural domains that remain recognizable under blotting conditions, ensuring a background-free signal.
But why is the VHH structure so effective at this specific task? To appreciate the full potential of these detection tools, we need to look at the underlying science.
Before detailing IP-specific nano-secondary antibodies, it is important to understand the molecular and biological characteristics of nanobodies (VHH) and their fundamental differences from conventional IgG antibodies.
Nanobodies (VHH) originate from heavy-chain antibodies (HCAb) naturally occurring in camelids such as camels and alpacas. Unlike conventional mammalian IgG, which consists of a heterotetramer comprising two heavy chains and two light chains, HCAb comprises two heavy chains only, lacking light-chain pairing. The antigen-binding function is entirely conferred by a single variable domain (VHH).
The VHH molecular weight is approximately 15 kDa, roughly one-tenth that of conventional IgG (~150 kDa). The complementarity-determining regions (CDRs), particularly the extended CDR3 loop, can penetrate enzyme active sites and receptor-binding pockets that conventional antibodies cannot access, enabling recognition of cryptic conformational epitopes and conferring unique binding capabilities to nanobodies.
The following table systematically compares conventional IgG secondary antibodies with IP-specific nano-secondary antibodies (VHH) across multiple parameters:
Parameter | Conventional IgG Secondary Antibody | IP-Specific Nano-Secondary Antibody (VHH) |
Molecular Weight | ~150 kDa (intact IgG) | ~15 kDa (single-domain VHH) |
Epitope Recognition | Primarily linear epitopes | Recognizes hidden/conformational epitopes |
Signal After Denaturation | Produces ~55 kDa HC and ~25 kDa LC background interference | No recognition post-denaturation; complete elimination of HC/LC background |
Production Method | Animal immunization + hybridoma; high batch-to-batch variation | Recombinant expression (E. coli/yeast/CHO); minimal batch variation |
Thermal Stability | Moderate (~60°C inactivation) | Extremely high (>70°C; reversible refolding) |
Affinity | High (KD ~nM range) | Exceptional affinity (typically low nM to pM range) |
Tissue Penetration | Poor (large MW) | Strong (small MW; enhanced tissue penetration) |
Experimental Operations | Requires optimized species-matching; complex protocol | Species-independent; simple, rapid protocol |
Cost | High animal use costs; long timelines | Recombinant production; controllable cost; stable supply |
Anti-Mouse IgG for IP, AlpSdAbs® VHH(HRP) is a next-generation nano-secondary antibody product developed by AlpVHHs specifically optimized for IP/Co-IP experimental applications. The product employs VHH derived from camelids as its molecular scaffold. Through high-throughput phage display library screening and affinity maturation, it achieves high-specificity recognition of native conformational mouse IgG.

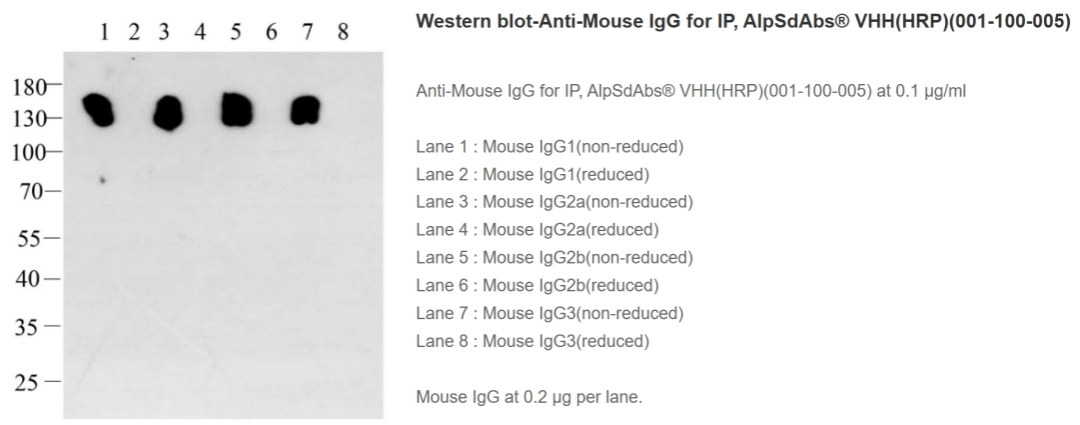

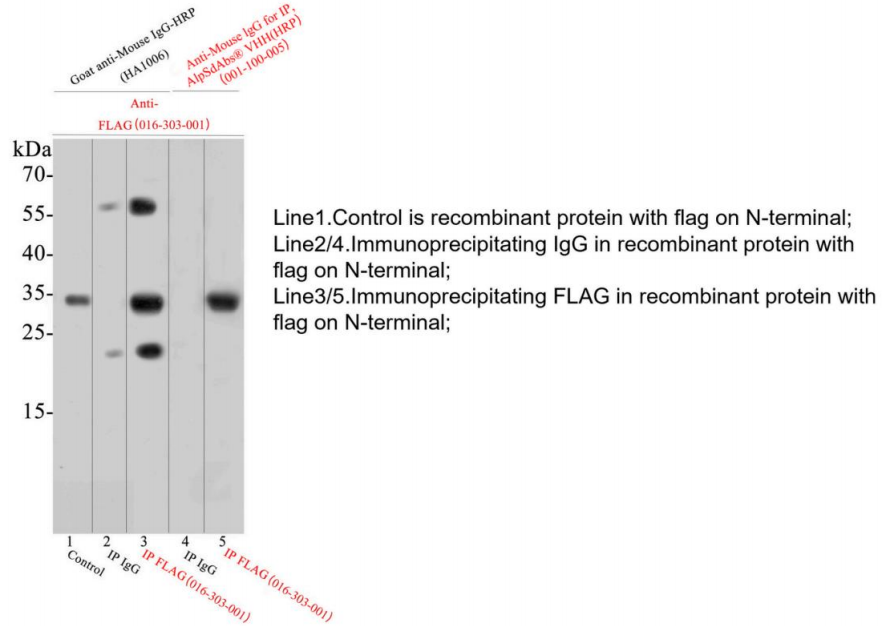

This IP-specific nano-secondary antibody detects primary antibodies in their native conformation and cannot recognize the denatured heavy and light chain of the IP antibody. This effectively avoids interference from the heavy and light chain, ensuring more accurate IP assays.
This IP-specific nano-secondary antibody retains the high affinity, strong binding capacity, and extreme stability of nanoantibodies, enabling efficient, rapid, and stable binding to target proteins.
Recombinantly expressed, this IP-specific nano-secondary antibody offers consistent product quality, significantly reducing batch-to-batch variability and making experiments more stable and simple, bringing peace of mind to your IP experiments.

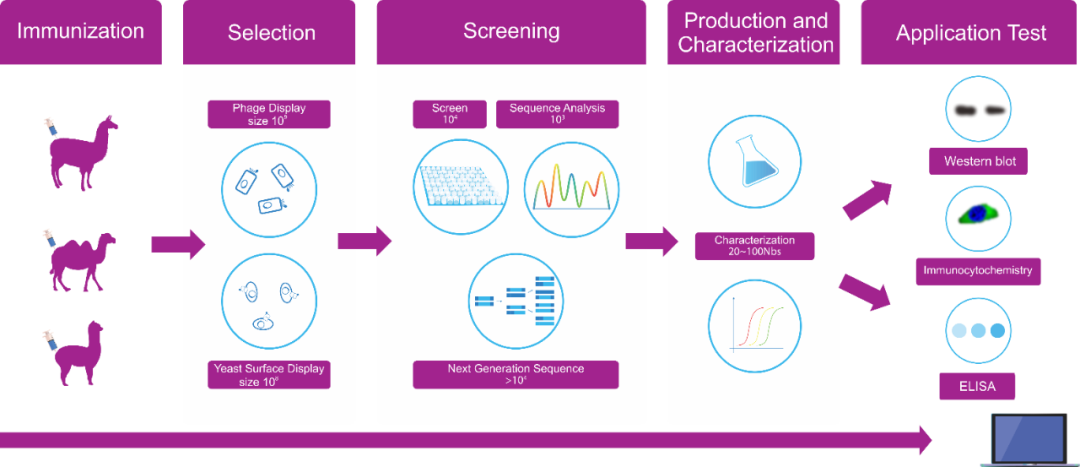

AlpVHHs is a supplier focused on the research, development, and service of nanobody products. The company employs phage display (Phage Display) and yeast surface display (Yeast Surface Display) technology platforms to develop high-quality recombinant nanobodies and provide innovative tools based on nanobodies to scientists worldwide. AlpVHHs is committed to advancing nanobody technology from frontier research to everyday scientific application, enabling every researcher to achieve experimental goals with lower technical barriers and greater reliability.
The core product lines of AlpVHHs encompass recombinant secondary antibodies (including the IP-specific series), tag antibodies, flow cytometry antibodies, intracellular antibodies, and affinity purification resins. All products employ recombinant expression technology, ensuring high batch-to-batch consistency and stable supply.
Related Products:
Code Number | Product Description | Applications | Size |
001-190-005 | WB | 100 μg | |
001-180-005 | WB | 100 μg | |
025-100-005 | WB | 100 μg | |
001-100-005 | WB | 100 μg |
1. what are nano secondary antibodies?
Nano-secondary antibodies, also called VHH, are derived from camelid heavy-chain antibodies. They specifically recognize conformational epitopes on native IgG, avoiding interference from heavy and light chains during Western blot detection.
2. why do I see heavy chain bands in Western blot?
Heavy chain bands appear because conventional secondary antibodies recognize linear epitopes. During SDS-PAGE denaturation, the heavy and light chains remain detectable, producing background that may obscure target protein signals.
3. What are the advantages of VHH antibodies?
VHH nano-secondary antibodies offer high affinity, small molecular size, exceptional thermal stability, and batch-to-batch consistency. They provide clean, background-free detection and simplify IP/Co-IP experiments.
4. How can I solve background interference in IP and Co-IP experiments?
To reduce background interference in IP/Co-IP, researchers can use VHH nano-secondary antibodies, chain-specific secondary antibodies, or primary antibodies from alternative species. VHH antibodies are the most universal solution, eliminating heavy/light chain signals without complex adjustments.
